Self-centering Wood Chuck Set for 3.75 Inch Steel

This wood chuck set for 95 mm (3.75 inches) is a mechanical device used to clamp a workpiece on a machine tool.

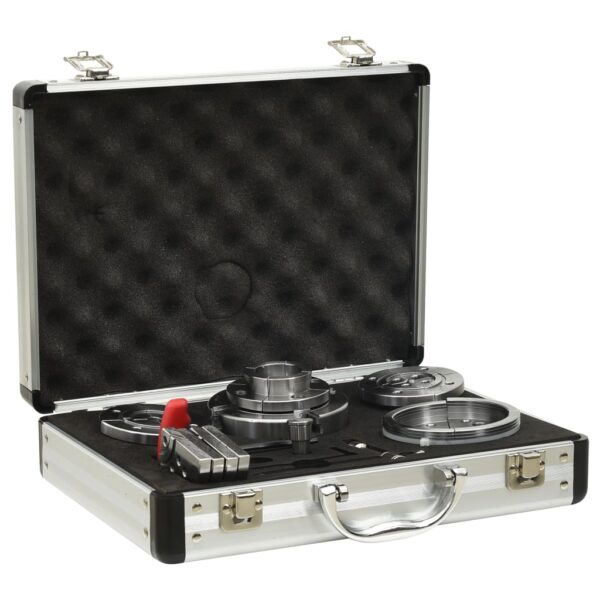

Made of steel, the set is durable and sturdy. As a machine tool accessory, it uses the radial movement of movable jaws evenly distributed on the chuck to clamp and position the workpiece. This wood lathe chuck set includes a 4 jaw self-centering chuck and interchangeable jaws for spindles, bowls, and work-pieces that are hard to be secured. The set will fit 1″ x 8 TPI spindle.

• Colour: Red and black
• Material: Steel
• Number of jaws: 4
• Self-centering
• Chuck diameter: 95 mm (3.75 inch)

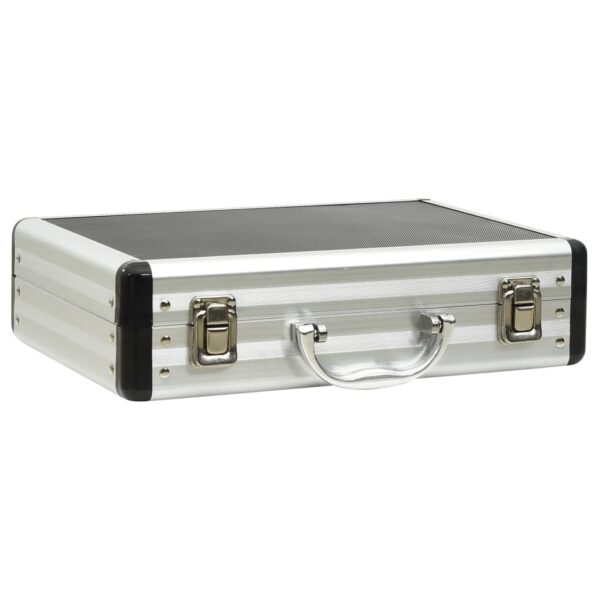

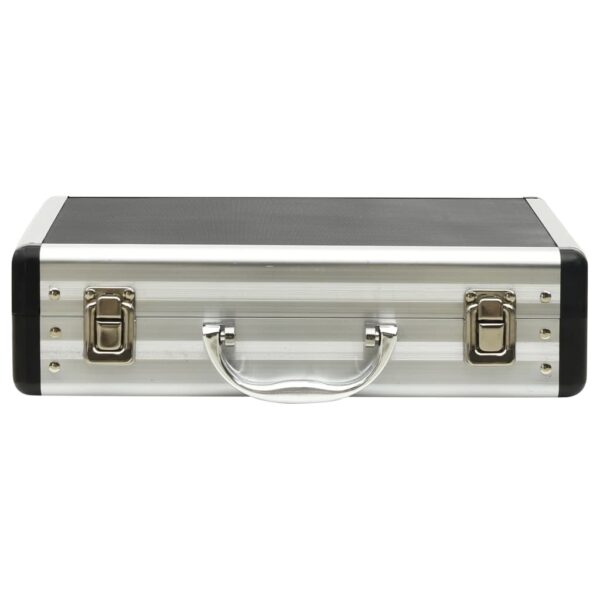

• Carrying case dimensions: 30.5 x 22.5 x 7.5 cm (L x W x H)
• Inside grip diameter range:
• , 1 Step jaws: 2.5 mm – 35 mm
• , 2 Round jaws: 32 mm – 64 mm
• , 3 Round jaws: 76 – 108 mm
• , 4 Pin jaws: 9.5 mm – 45 mm
• , 5 Flat jaws: 73 mm
• Outside grip diameter range:
• , 1 Step jaws (Lower step): 38 mm – 73 mm
• , 1 Step jaws (Upper step): 19 mm – 51 mm
• , 2 Round jaws: 45 mm – 80 mm
• , 3 Round jaws: 90 mm – 124 mm
• , 4 Pin jaws: 25 mm – 60 mm
• , 5 Flat jaws: 130 mm
• Indexed backplate: 24 and 36 positions
• Thread: 1″ x 8TPI
• Maximum speed: 3000 R/min
• Net weight: 4.5 kg
• Can hold round and square stock
• Assembly required: Yes

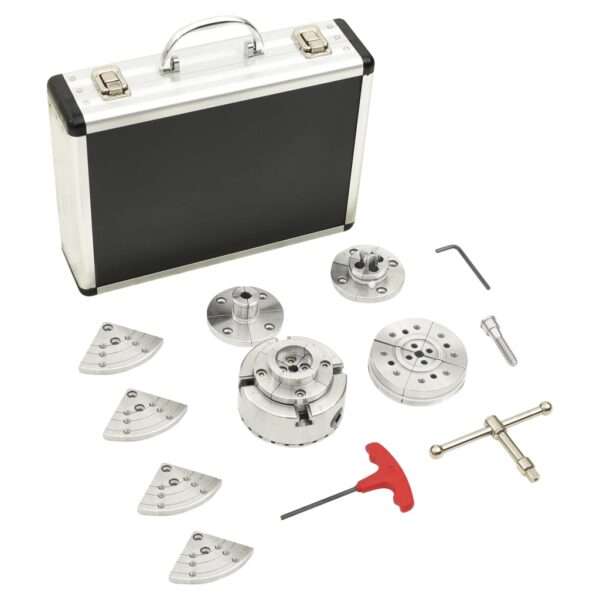

• Delivery contains:
• 1 x Chuck body
• 1 x Carrying case
• 1 x T-handle hex wrench 4mm
• 1 x Lathe chuck key 8 mm
• 1x Woodworm screw
• 1 x Hex wrench
• 4 x , 1 Step jaw
• 4 x , 2 Round jaw
• 4 x , 3 Round jaw
• 4 x , 4 Pin jaw
• 8 x Flat head cap screw M5-.8×8
• 8 x Grip studs 13 mm, M6-1×6
• 8 x Grip studs 18 mm, M6-1×6
